Engineered from
the cell outward.
Our anion-exchange-membrane fuel cell oxidises ammonia at the anode and delivers electrons to an external load. One conversion step, no hydrogen cracker, non-precious-metal catalysts.

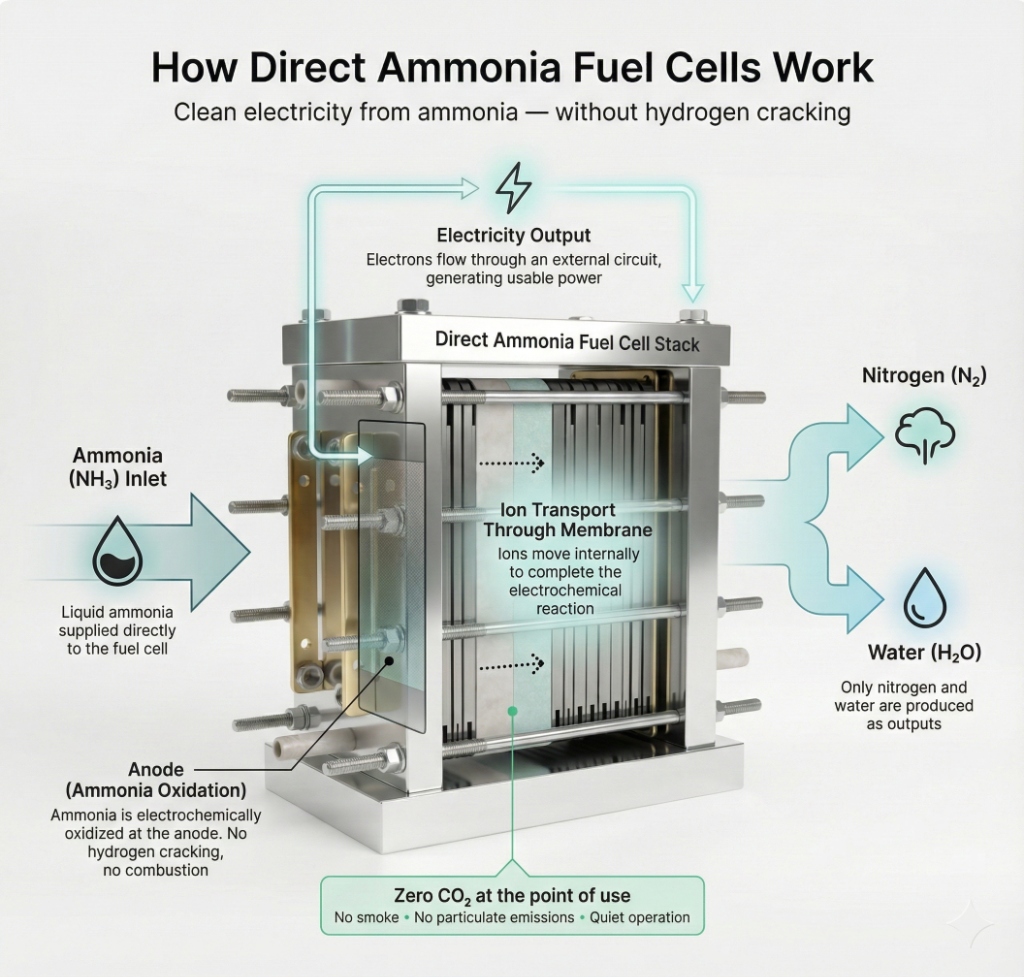

One electrochemical
step.
Ammonia goes in at the anode and oxygen at the cathode. Hydroxide ions cross the membrane from cathode to anode; electrons travel through the external circuit. The intended products are DC electricity, nitrogen and water.
Source Half-reactions as reported for AEM direct ammonia fuel cells (Lan & Tao; J. Power Sources). Actual exhaust composition, including unreacted NH₃, must be measured experimentally.
Anode · 2 NH₃ + 6 OH⁻ → N₂ + 6 H₂O + 6 e⁻
Cathode · 3/2 O₂ + 3 H₂O + 6 e⁻ → 6 OH⁻
Overall · 2 NH₃ + 3/2 O₂ → N₂ + 3 H₂O + electricity
- Anode
- Fe–Ni/C catalyst
- Cathode
- MnO₂/C catalyst
- Membrane
- PiperION anion-exchange membrane
- Temperature
- ≈70 °C experimental reference
- IP
- Indian patent application 202641059092 · filed 9 May 2026 · pending
Direct NH₃ feed
Ammonia is supplied straight to the electrochemical cell.
No external cracker
No onboard hydrogen-production subsystem in the architecture.
Low temperature
An AEM route operating around the experimental temperature range.
Non-precious catalysts
Fe–Ni/C and MnO₂/C, with no platinum-group metals.
NH₃ / pure O₂
NH₃ gas at the anode and pure O₂ at the cathode. Cell configuration, temperature, humidity and performance values correspond to the documented laboratory experiment.
NH₃ / atmospheric air
Vaporised ammonia at the anode and atmospheric air at the cathode, through filtration, air management and CO₂ control. Humidity needs, CO₂-filter effectiveness, cathode flow and full-system performance are still under experimental validation.
What the lab cell proves,
and what it does not.

- Single 5 cm² cell, NH₃ gas at the anode, pure O₂ at the cathode
- ≈121 mW/cm² peak power density at ≈0.27–0.30 A/cm²
- ≈1.0 V open-circuit voltage at ≈70 °C
- Fe–Ni/C anode and MnO₂/C cathode, no platinum-group metals
- Ambient-air cathode operation
- Larger-area cells and a multi-cell stack
- Continuous durability and degradation rates
- Measured exhaust composition (NH₃ slip, NOx, N₂O)
- Any finished vehicle or aircraft power system
Simulation supports engineering decisions. It does not replace physical validation; only a physical test moves a gate to complete.
Scaling the physics,
not just the geometry.
Moving from a 5 cm² cell to large-area cells and a stack brings new problems: reactant distribution, manifolds, pressure drop, local temperature, current-density uniformity, sealing and compression. We combine measured data with multiphysics models before building.
- Cell model
- Measured data → parameterised electrochemical model
- COMSOL
- Flow, species, electrochemistry, thermal and current distribution
- Abaqus
- Compression, contact, seals, end plates and deformation
Known limits we design around
- Ammonia oxidation kinetics: reaction rate at the anode
- Crossover: fuel crossing the membrane
- AEM conductivity: hydroxide transport resistance
- Water management: electrode and membrane hydration
- Mass transport: reactant distribution at higher current
- Durability: catalyst, membrane and interface degradation
The top risks, and the
evidence that retires them.
A risk is closed only by evidence, not by a model. Investors receive the full register with monthly updates.
| Risk | Mitigation | Status today | Next evidence |
|---|---|---|---|
| Large-area performance | Simulation-led larger-cell design, then a physical gate | Measured at 5 cm² only | Larger-cell polarisation against the 5 cm² baseline |
| NH₃ crossover / slip | Membrane and operating-window testing | Not yet quantified | Crossover and exhaust NH₃ measurement |
| Air operation | Filtered and unfiltered air at controlled loads | Pure-O₂ data only | Repeatable air-fed polarisation |
| Durability | Cycling and long-duration tests | No long-duration data yet | Extended-duration and start-stop results |
| Balance-of-plant load | Gross-to-net system budgeting | Budgeted, not measured | Measured BoP draw on the short stack |
| System safety | Containment, detection, isolation, independent testing | Concept architecture in CAD | Enclosure leak, detection and shutdown tests |
| Regulatory pathway | Early engagement with authorities | Reference frameworks identified | Documented approval pathway with PESO and testing agencies |
Five layers of safety,
not an afterthought.
Failure scenarios are treated separately for a people-carrying road vehicle and for an unmanned aircraft.
Separate bays
- Fuel cell, battery and ammonia tank in separate bays
- NH₃ sensing in the fuel bay and the stack exhaust, streamed to the ground station
- Normally-closed tank valve isolates fuel on a detected fault
- Ram-air ventilated tank bay; unused fuel is burnt in an oxidiser, not vented
- Battery reserve to come home if the fuel cell stops; parachute and airbag recovery
Occupant protection
- Qualified pressure vessel inside a negatively ventilated enclosure
- Fuel line routed outside the occupant space
- NH₃ sensors, crash and tilt detection, external manual shut-off
- Leak response: isolate, purge, controlled shutdown
Planned Concept architecture; no vehicle- or aircraft-level safety test has been completed. Ammonia storage pressure is temperature-dependent: about 8.6 bar at 20 °C, 10 bar at 25 °C and 15.5 bar at 40 °C, so vessels are rated for the hottest operating case.
The molecule
already moves.
India already produces, transports and handles ammonia industrially. Vehicle-scale refuelling still needs engineering and approvals.
Industrial production does not mean public retail refuelling or certified small tanks. The fuel cell is conversion technology; its lifecycle carbon impact depends on how the ammonia is made, from conventional to green.

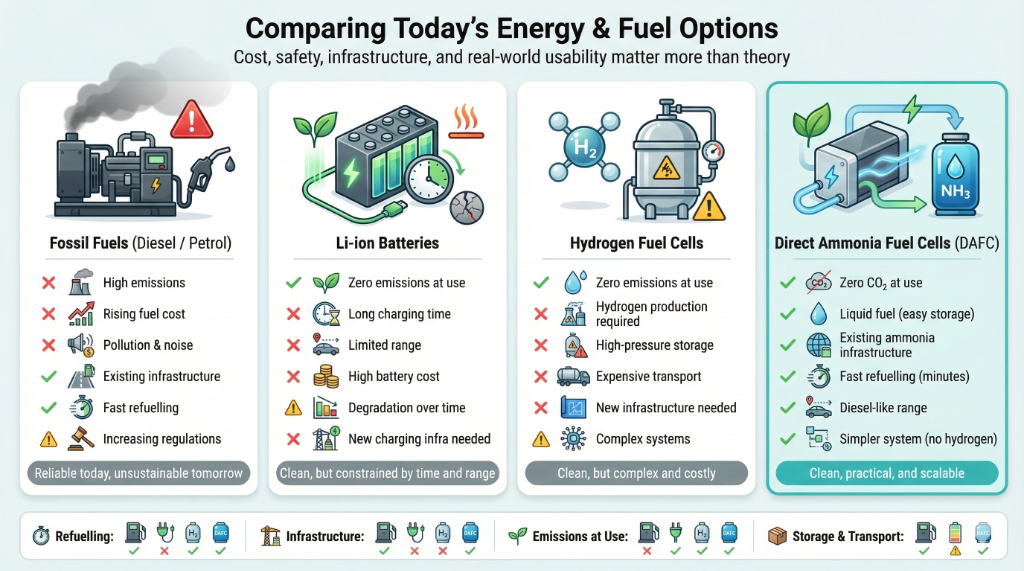

Four ways to make
electricity from stored energy.
| Battery EV | Cracker + H₂ fuel cell | Direct-ammonia SOFC | H2ONE AEM DAFC | |
|---|---|---|---|---|
| Energy carrier | Grid electricity | NH₃, cracked to H₂ on board | NH₃ | NH₃ |
| External cracker | n/a | Yes | No (internal reforming) | No |
| Temperature | Ambient | Hot cracker (e.g. GenCell FOX) | 600–900 °C | ≈70 °C (experimental) |
| Maturity | Commercial | Early commercial / demonstration | Demonstration | Laboratory cell |
Source Based on public descriptions of each approach. A positioning map, not a ranking; H2ONE's column reflects development status.
The same core,
later markets.
Target Shown for context. These follow the stack scale-up and are not part of the funded programmes.
Off-grid power
Containerised power for villages, telecom towers, clinics and backup.
Small craft
Harbour and coastal vessels, with marine-application guidance from our advisors.
OEM modules
Stack modules for equipment makers once the short stack is validated.
